Key Features
- Discrete Class A Topology: Our design ensures pristine signal amplification with zero crossover distortion. This architecture provides an incredibly wide soundstage, precise imaging, and an uncoloured, lifelike sonic signature that honours the original recording. Each channel operates independently, virtually eliminating crosstalk and maximising channel separation for a truly three-dimensional sound.
- Precision RIAA Equalisation: We've implemented a passive RIAA equalisation network using tight-tolerance components. This ensures a highly accurate and linear frequency response, preserving the tonal balance and dynamics of your vinyl records exactly as the mastering engineer intended.
- High-Quality Components: Every component has been selected for its superior sonic performance and long-term reliability. From the close tolerance resistors and capacitors to the low-noise Bipolar transistors, this preamp is built to deliver exceptional clarity, allowing the music to emerge with breathtaking realism.
- Solid Chassis: All-metal chassis is designed to resist vibrations and electromagnetic interference, providing a stable and quiet environment for the sensitive internal electronics. This "quiet" foundation is critical for preserving the delicate signals from your phono cartridge.

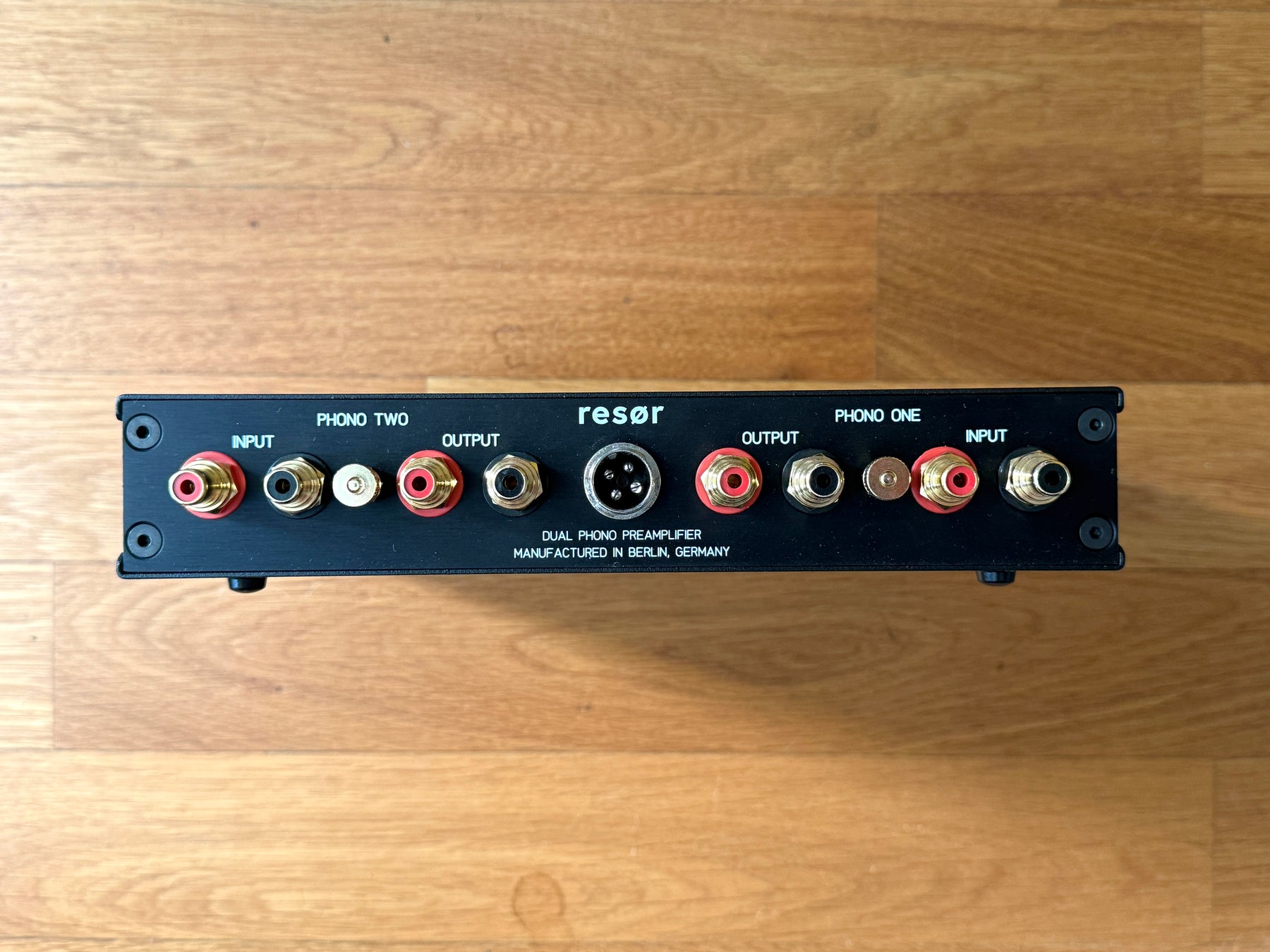

- Gold-Plated RCA Connectors: High-quality, gold-plated RCA input and output jacks ensure a secure, corrosion-resistant connection, maintaining signal integrity from your turntable to your amplifier.
Why Choose Our Class A Phono Preamplifier
If you've invested in a quality turntable, don't let a subpar phono stage bottleneck your system. Our Class A Phono Preamplifier elevates your analog setup from good to extraordinary. Hear the subtle textures of a cello, the delicate shimmer of cymbals, and the rich, warm vocals you never knew were buried in the grooves. It’s the difference between hearing a record and truly experiencing the music.
Versions
Phonograph - made for one turntable
Phonograph X2 - made for two turntables
Specifications
Discrete Class A Op-Amps, Gain 52 dB
Passive RIAA Equalisation, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Line Out:
RIAA accuracy within +/- 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS
In the box
The following items are included inside the box:
- resør Phonograph / X2
- External Power Supply
- AC power cable
- DC power cable
- Warranty
