resør 100 LE Frequency Isolator

Regular price€550,00
/
Shipping, taxes, and discount codes calculated at checkout.
Production time takes around 12 to 24 weeks.

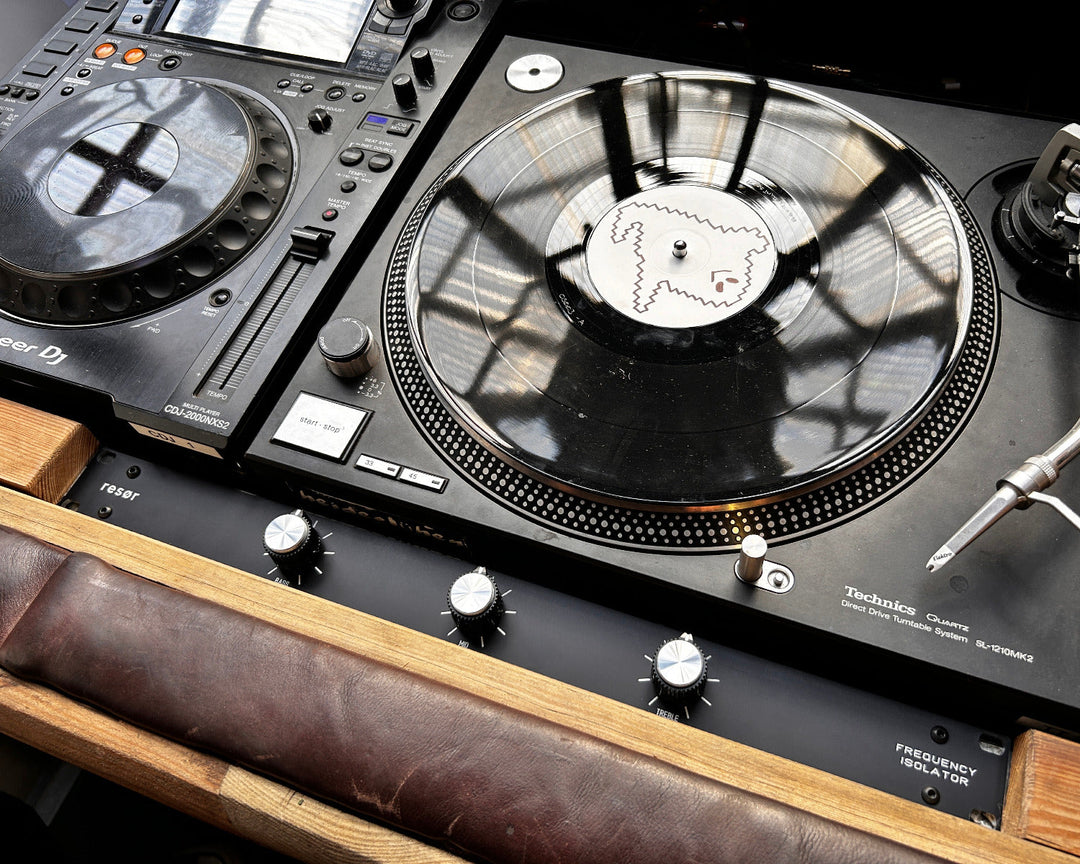

resør 100 LE (limited edition) is our standalone frequency isolator housed in a 19-inch 1U rack case. It can be added to a DJ setup in a club or at home and attached to any mixer with a Master Insert or Loop Out/In. With its measured performance and specifications, studio use is also possible.

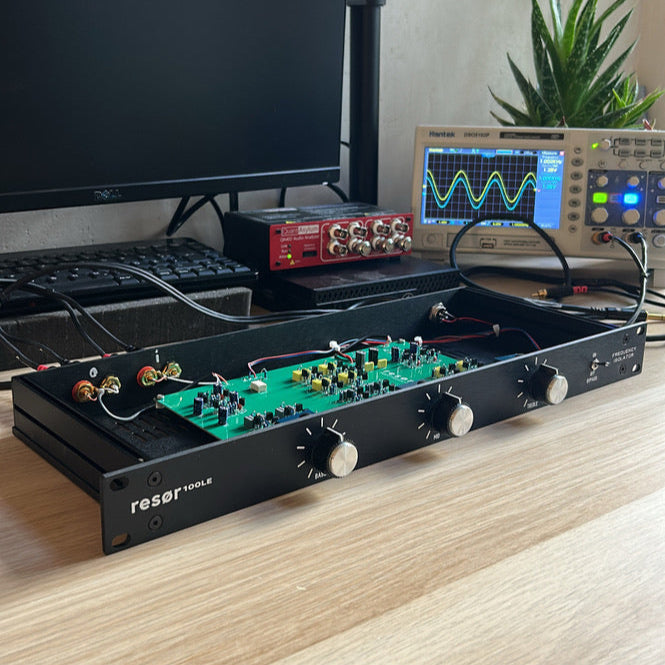

Engineered in 100% discrete circuitry utilising our class-A operational amplifier. Due to the use of FET transistors in its filters, it has that nice 2nd harmonic which is ideal for adding analog warmth to the vocals and instruments.

- Inputs: L+R balanced TRS
- Outputs: L+R balanced TRS
- 3-band Linkwitz-Riley filters
- Attenuation is better than -85 dB (full-cut)
- Unity gain of 0 dB at mid position
- Maximum boost +12 dB
- Frequency response +/-0.25dB (20 Hz - 22 kHz)
- Channel separation better than -85 dB
- Audio grade relay for true bypass
- Class-A circuitry with 28 BJT and 32 FET transistors
- ALPS RK27 pots
- Can handle input signals higher than 7VRMS

CUSTOMISATIONS

- Faceplate: Black or Silver
- Knobs: Standard, Urei, premium Black or Silver

- class-A Discrete Circuitry
- 3-band filters (24 dB / Oct)
- Crossover Frequencies 310 Hz and 3100 Hz
- Full-cut to maximum boost of +12 dB
- Isolator true bypass switch

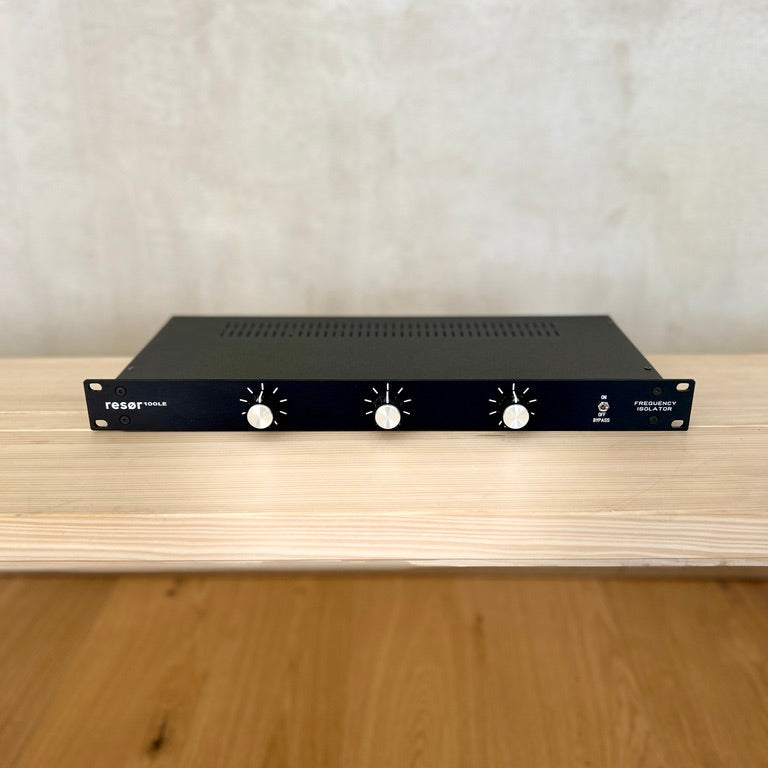

- 1U 19” rack unit
- External power supply unit (+/-24VDC)
- 3 Years International Warranty
