resør 2500

INPUTS
Channel ONE & TWO: selectable sources between LINE and PHONO (Stereo RCA)

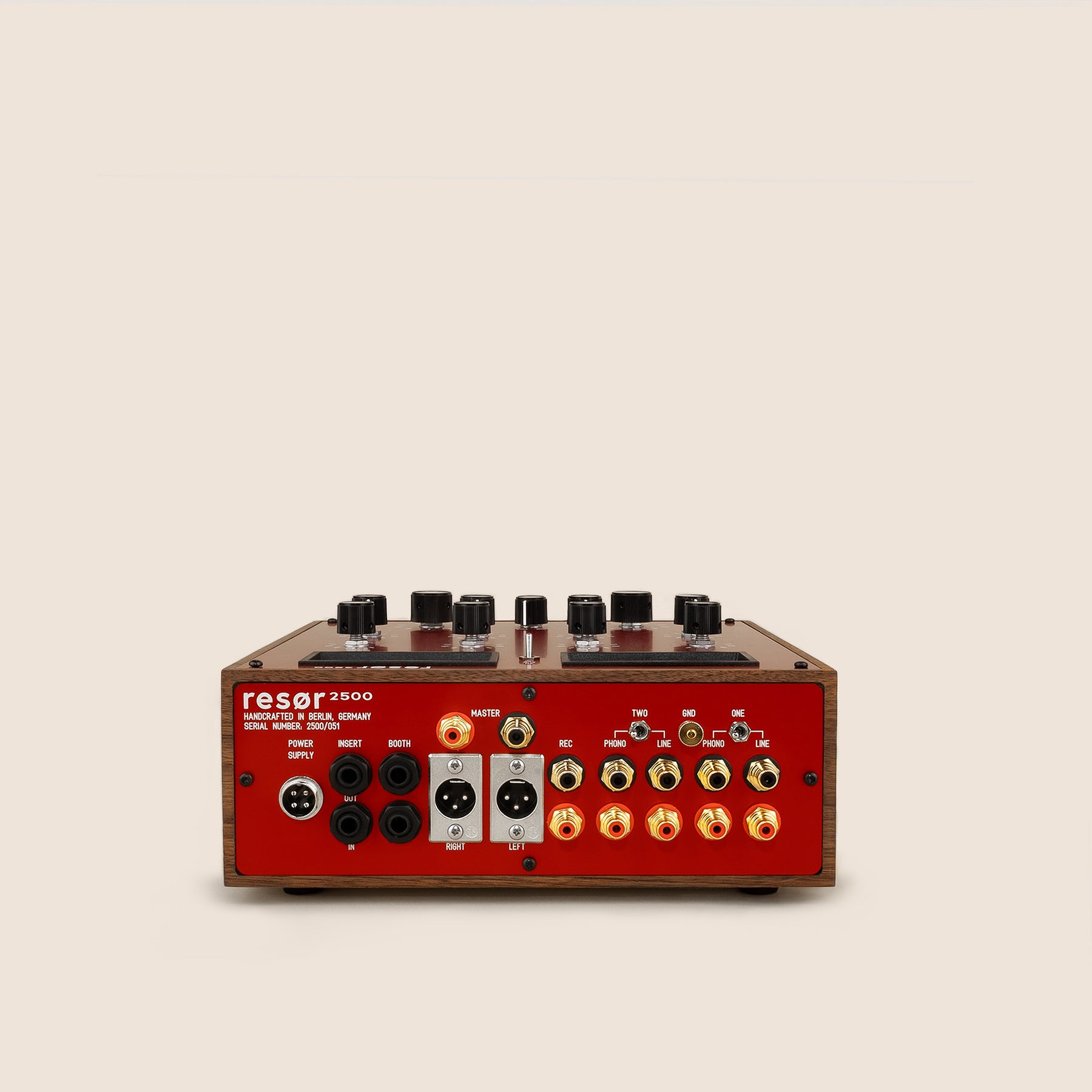

OUTPUTS
Master 1: Balanced XLR
Master 2: Unbalanced RCA
Booth: Balanced TRS
Rec: Unbalanced RCA

CHANNEL EQ
2-band Baxandall: Bass +/- 18 dB (at 150 Hz), Treble: +/- 12dB (at 10 kHz)

MASTER INSERT
Out: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)
In: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)

OTHER
2 x Analog VU Meters (1VRMS = 0db)
Rotary Switch to CUE between Channels ONE & TWO
Cue/Mix Blend potentiometer
External Power Supply Unit with lockable DC cable (both ends)
Travel Case (Dust and Water Proof)
3 Years International Warranty

CUSTOMIZATIONS
Wood: Natural Oak, Matte Black, Premium: Walnut
Faceplate: Black, Silver, Bronze; Premium: Metallic Red, Metallic Blue, Metallic Green
Knobs style: Standard, Urei; Premium: Silver Matte Aluminum, Black Matte Aluminum

Travel Case
Discrete class-A circuitry
External power supply
Master insert
3 years international warranty

Line Inputs

Discrete, Class-A Op-Amps
Measured Line In to Master Out:
Frequency response +/- 0,3 dB, 20 Hz to 20 kHz
THD+N better than 0,004 %
SNR better than -95 dB

Phono Inputs

Discrete, Class-A Op-Amps, Gain 40 dB
Passive RIAA Equalization, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Master Out:
RIAA accuracy within +/- 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS

Master Output

Balanced XLR
Unbalanced RCA L and R
Impedance < 300 ohm

Booth Output

Balanced TRS
Impedance < 300 ohm

Record Output

Nominal level -10dBV
Impedance < 300 ohm

Crosstalk

Channel Fader offness < -100 dB
Channel L/R separation <-70 dB
Isolator offness < -90 dB

DIMENSIONS

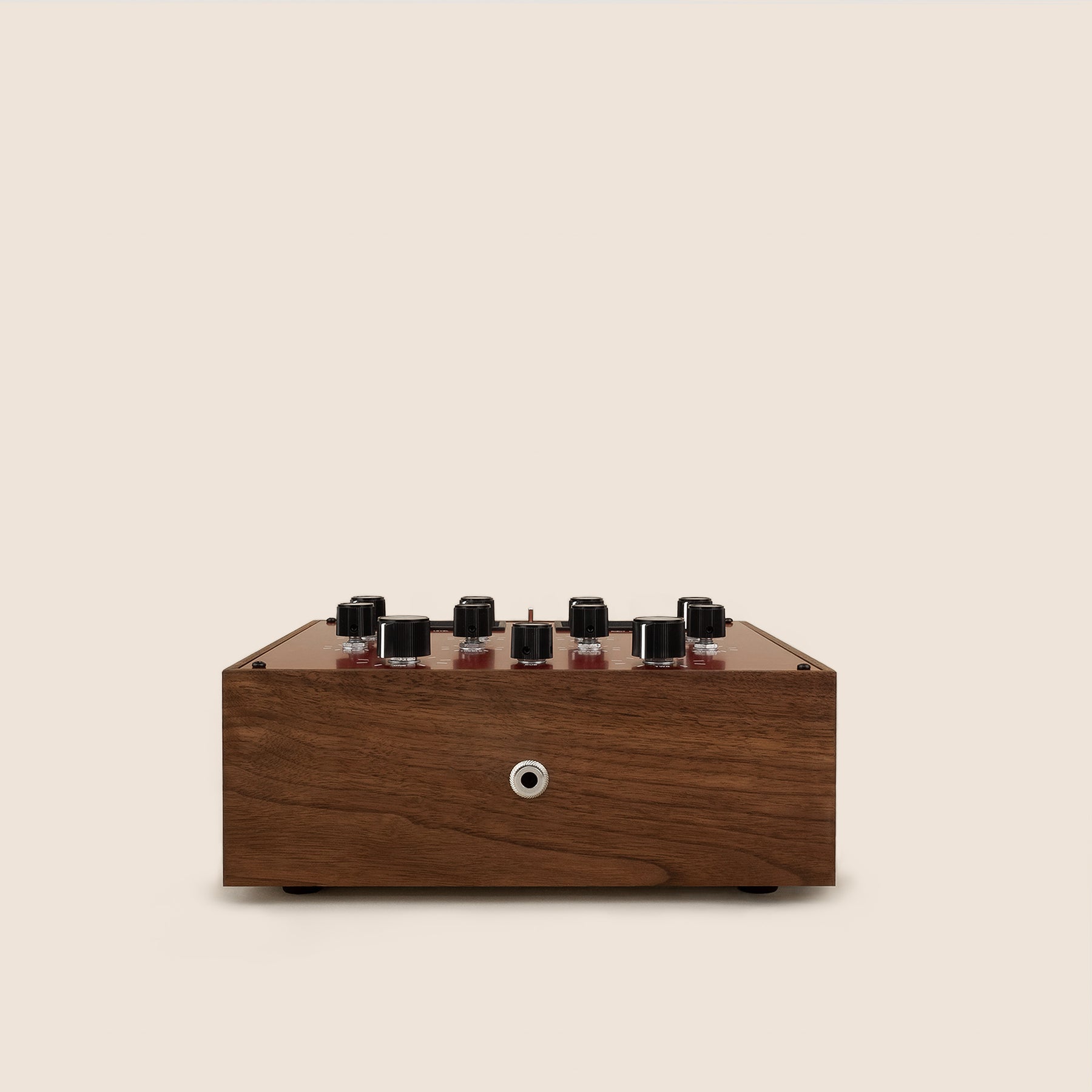

250 mm (W), 250 mm (D), 98 mm (H) - (please note that this does not include Knobs, Headphone Jack on the front side, RCA's and Sockets on the rear side of the mixer)

WEIGHT
Mixer: 3.5 kg
Power Supply: 1 kg
With travel case: 8 kg
