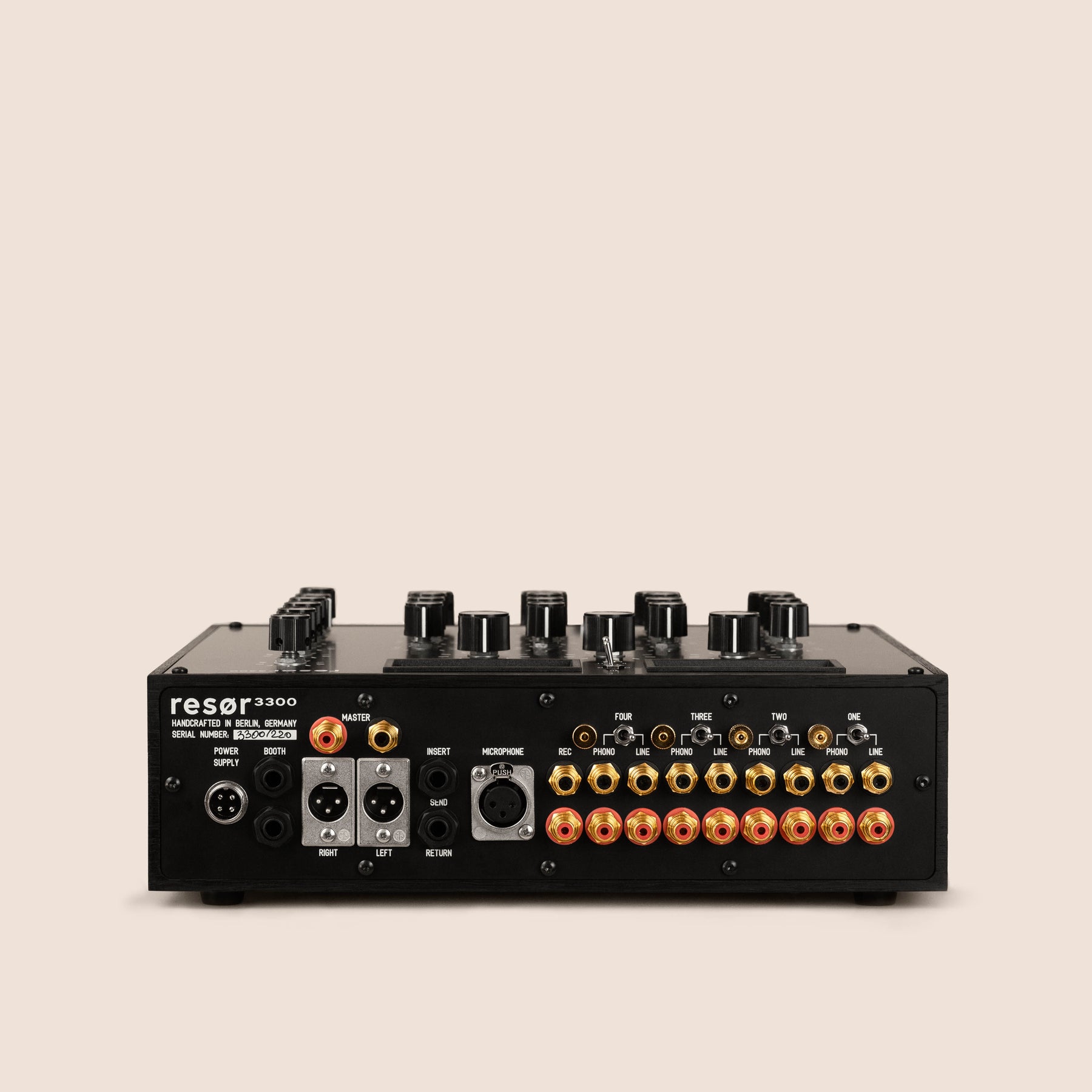

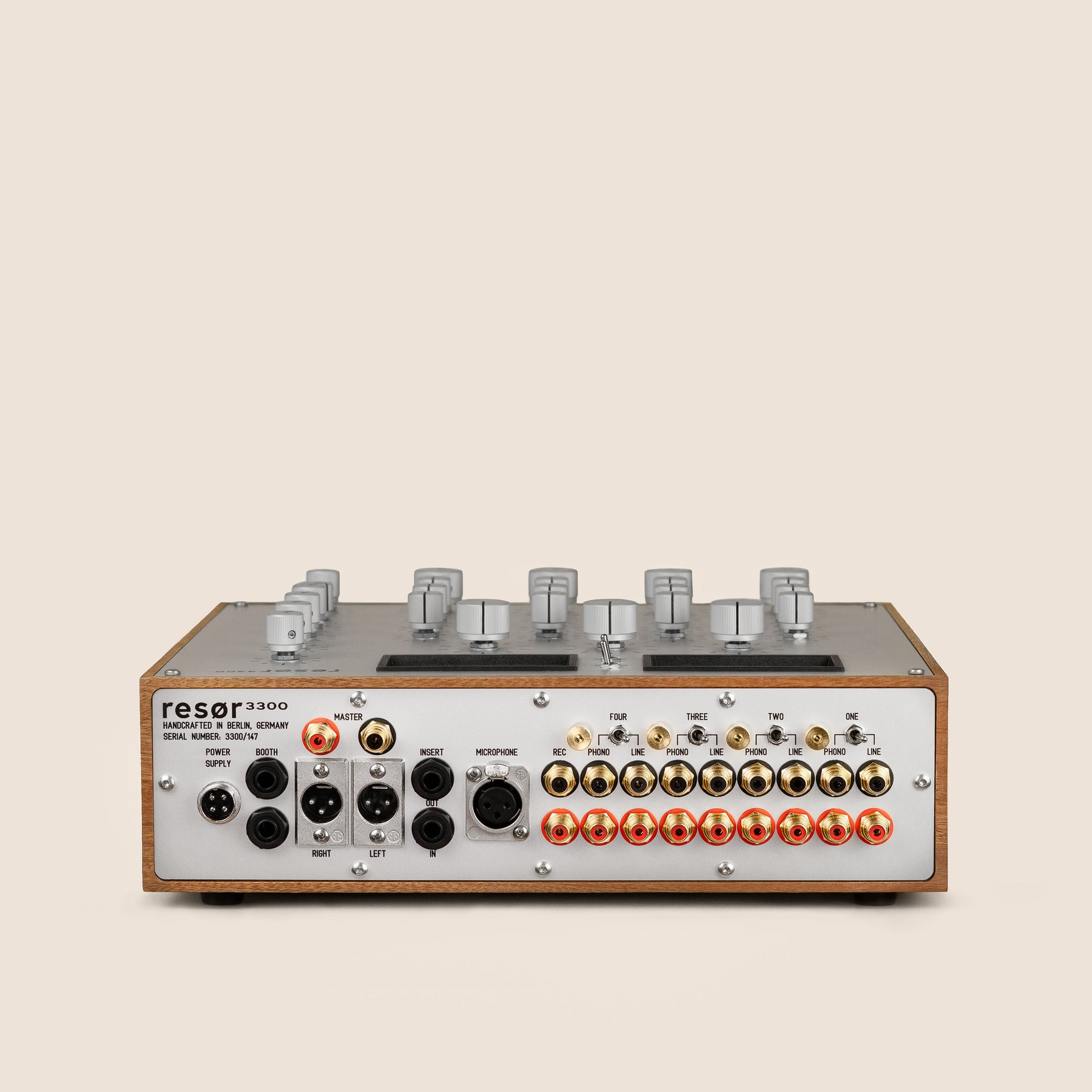

INPUTS
Channels 1-4: selectable PHONO & LINE (RCA)
Microphone: dedicated XLR with own control
OUTPUTS
Master 1: Balanced XLR
Master 2: Unbalanced RCA
Booth: Balanced TRS
Rec: Unbalanced RCA
CHANNEL EQ
3 Band Baxandall: Bass +/- 18 dB (at 150 Hz), Mids +/-
10 (at 800 Hz), Treble: +/- 10dB (at 10 kHz)
MASTER ISOLATOR
Fully discrete class-A circuitry
3 Band, 24 dB /Oct, Linkwitz-Riley filters, crossover
frequencies at 310 Hz and 3100 Hz,
Full-cut to maximum +12 dB, ON/OFF true bypass with
Audio Grade Relay
MASTER INSERT
Out: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground) - post Master Isolator
In: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground) - pre Outputs

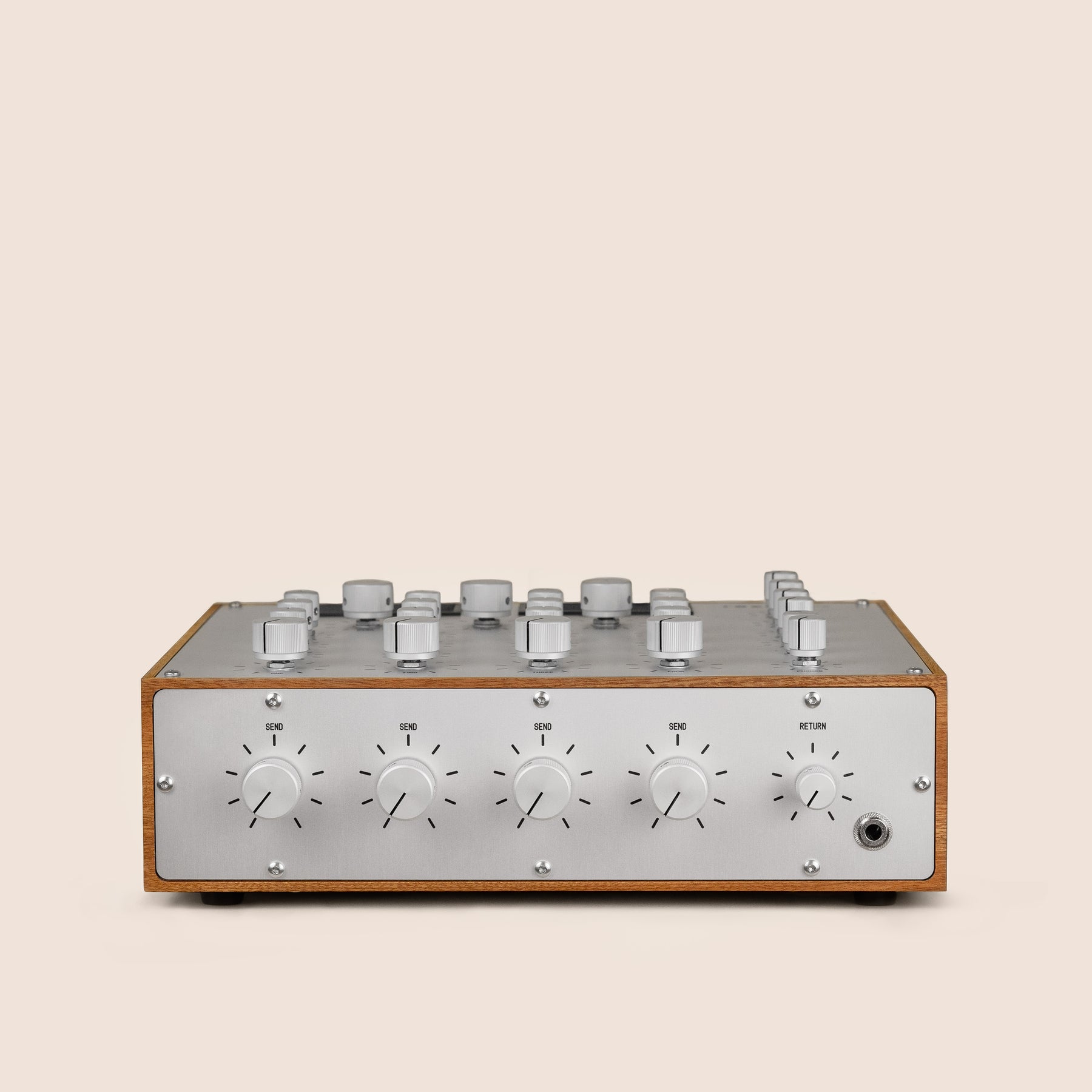

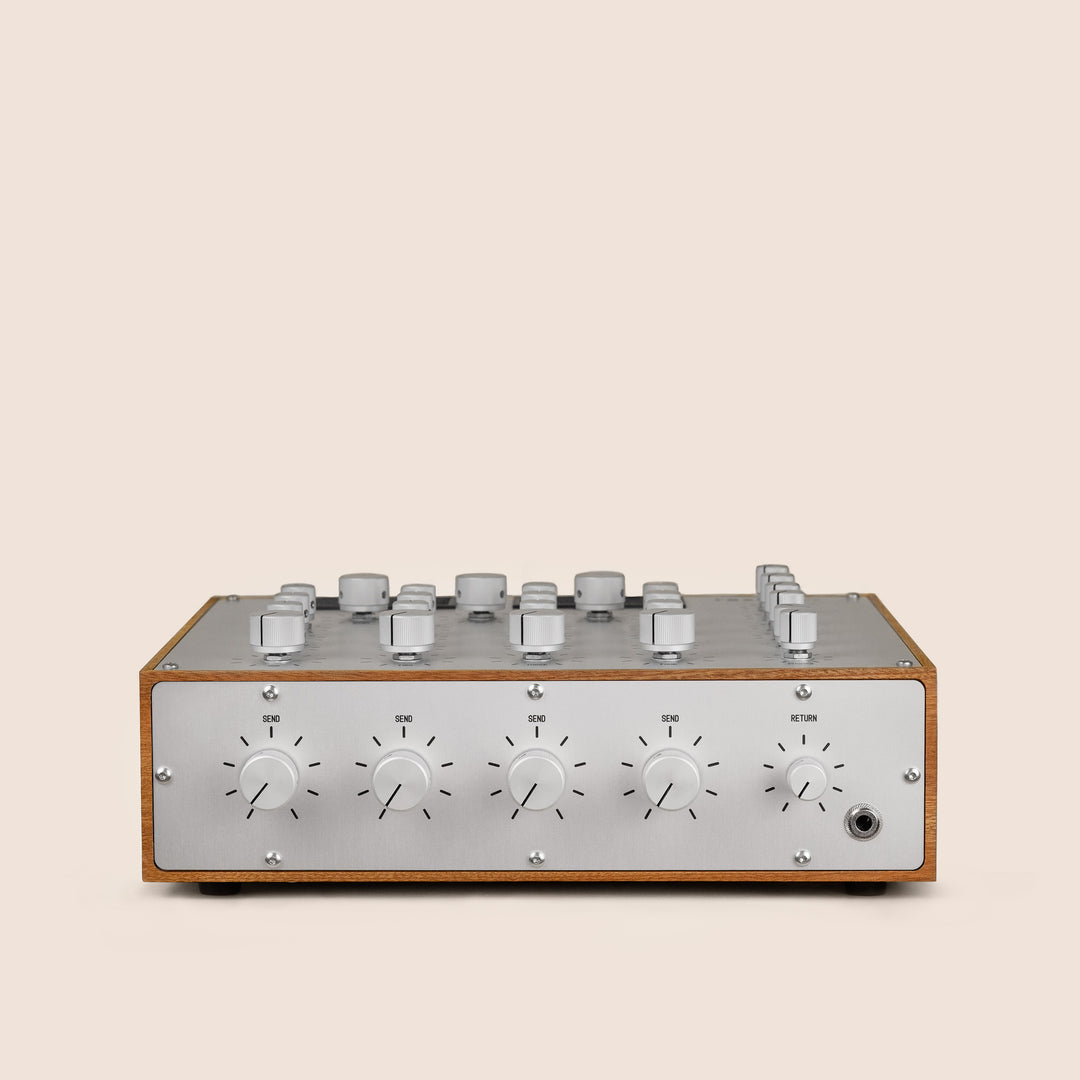

3300 FX (Send and Return)
Effects Out: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)
Effects In: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)

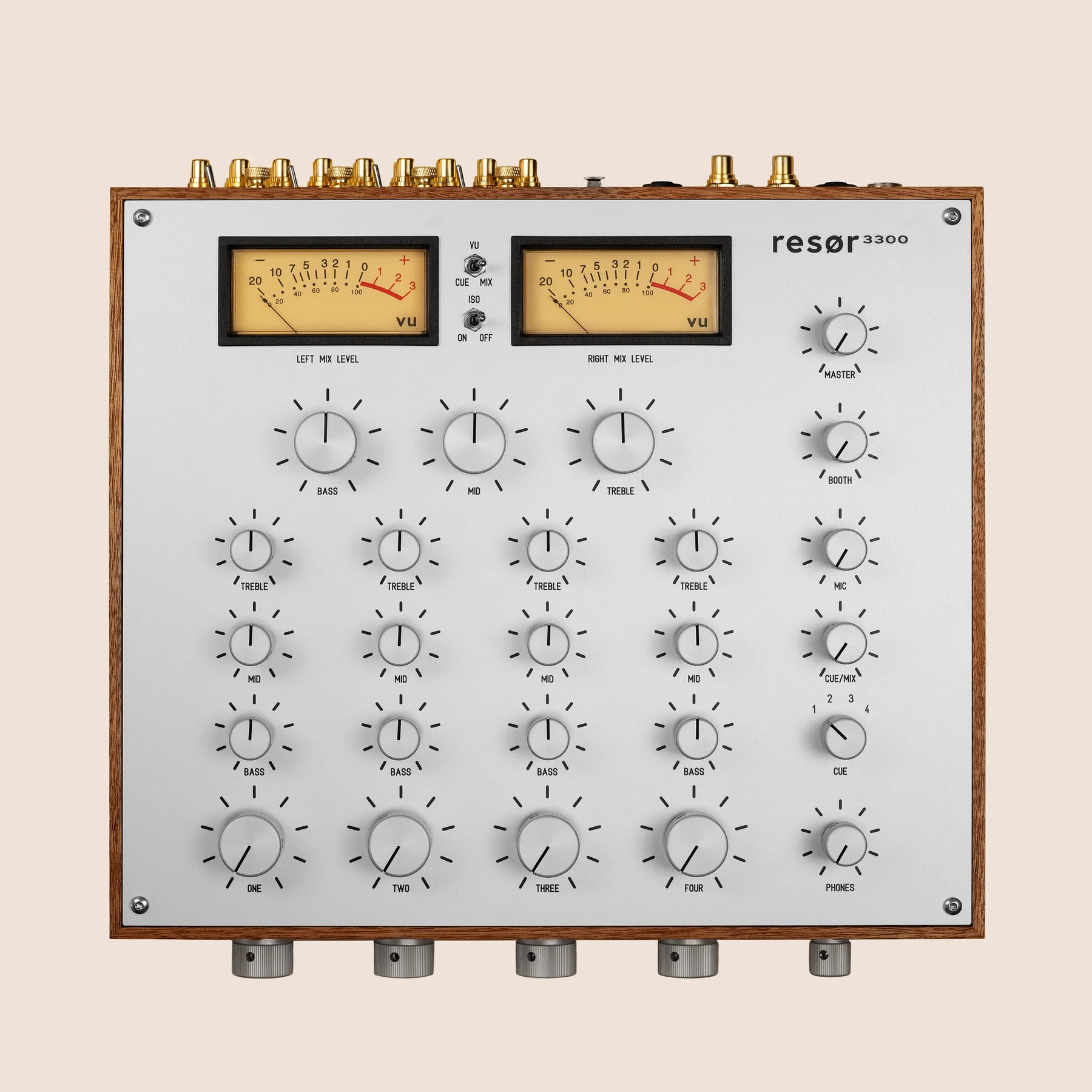

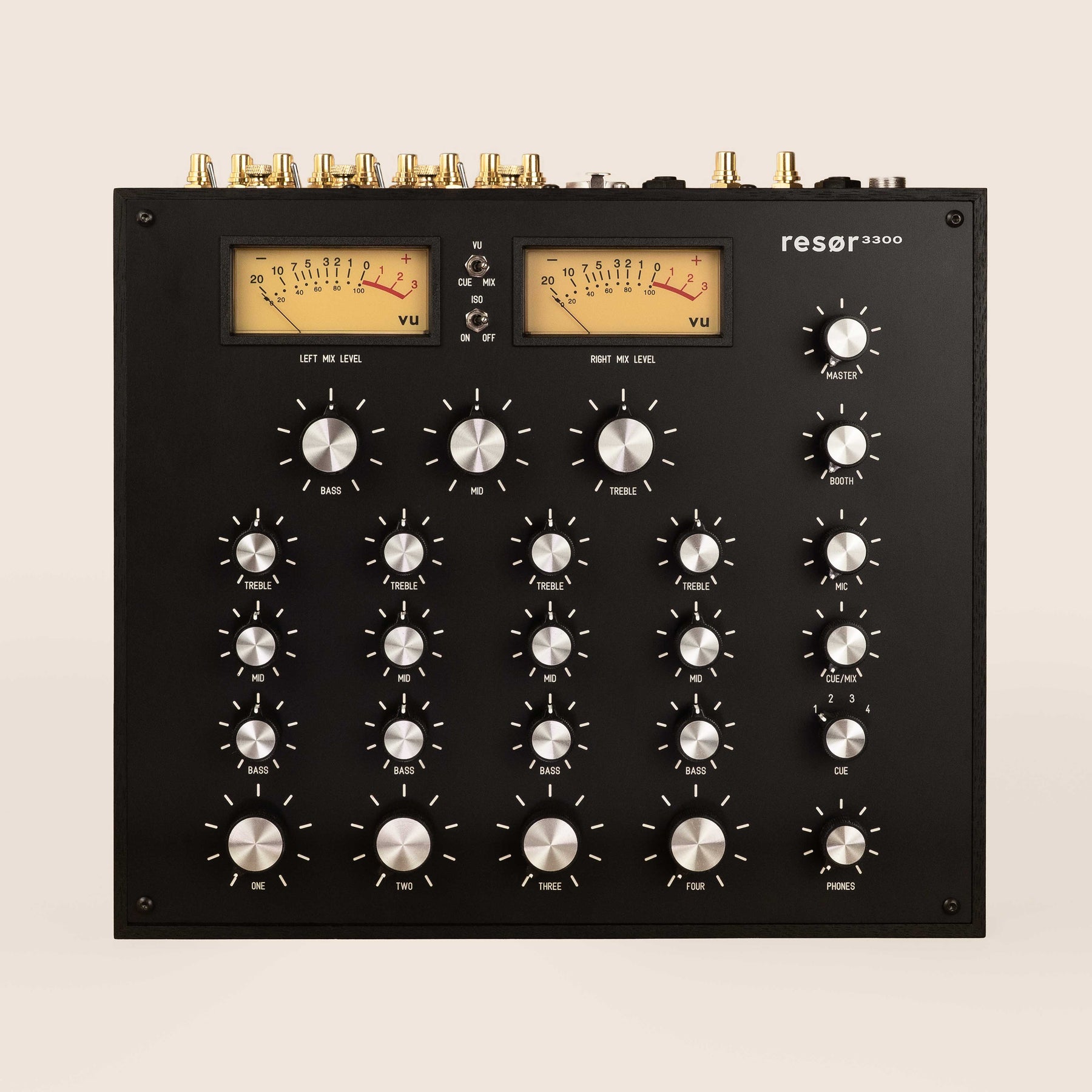

CUSTOMIZATIONS
Wood: Natural Oak, Matte Black, Walnut
Faceplate (Matte Aluminum): Black, Bronze, SIlver;
Premium Metallic Red, Metallic Green, Metallic Blue
Knobs style: Resor Standard, Urei knobs; Premium
knobs: Silver Matte Aluminum, Black Matte Aluminum
VU-Meters: Standard, 4x Round (one per channel)
OTHER
2 x Analog VU Meters (1VRMS = 0db)
Cue/Mix Switch for the VU Meters, to display either the
Cue or Mix signals
Rotary Switch to CUE between all four Channels
Cue/Mix Blend potentiometer
Audio Grade external Power Supply Unit
3 Years International Warranty
