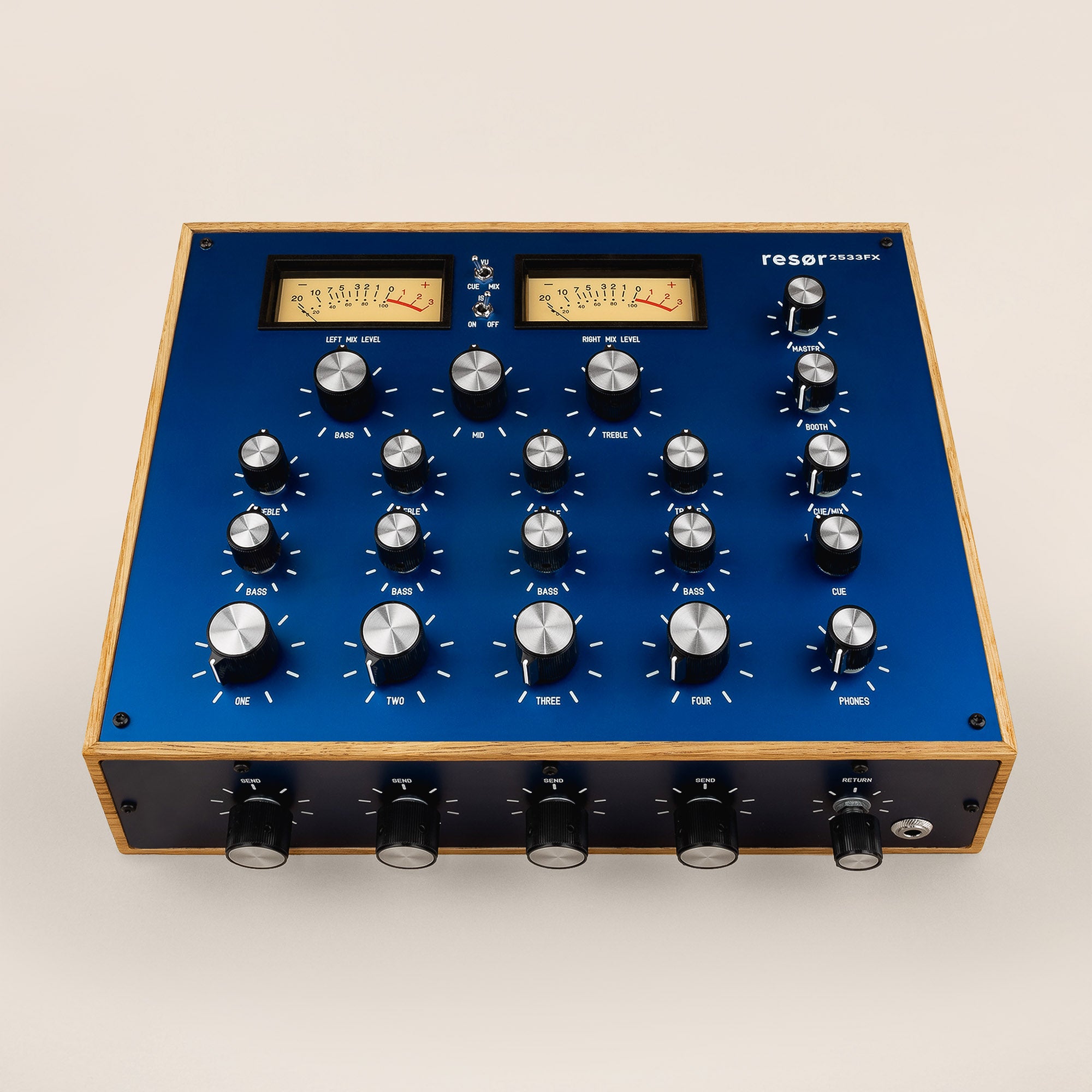

resør 2533 is a 4-channel mixer that covers all four festival seasons. Additionally, you can further customise your mix with external effects via Master Insert.
With added FX-bus, the resør 2533 FX offers plenty of possibilities by adding an external FX unit and apply those per channel.
Travel Case included in price.
Features
Channels 1,2,3: Line / Phono
Channel 4: Line A / Line B
Master Out (XLR, Balanced Stereo), Booth Out (TRS, Balanced Stereo), Record Out (RCA, Unbalanced) and Headphones (TRS, Stereo)
Master Insert (TRS, Unbalanced), Stereo (Tip - Left, Ring - Right, Sleeve - Ground)
2 band Baxandall Equalizer
Bass - boost and cut 12 dB (100 Hz)
Treble - boost and cut 12 dB (10 kHz)
3 band master isolator, 24dB (< -90 dB of attenuation) “full-cut”, with maximum boost of 12dB. Crossover frequencies are at 310 Hz and 3100 Hz. True Bypass switch. IC-based and very transparent (FAQ page for more info)
Two NISSEI analog VU-meters provide a tactile level of L+R Stereo Mix signal (post summing)
Cue Select (route a stereo audio signal of any channel)
Cue/Mix (blends stereo audio signal between Cue and Mix)
Techical specifications
Line Inputs
Discrete, Class-A Op-Amps
Measured Line In to Master Out:
Frequency response +/- 0,3 dB, 20 Hz to 20 kHz
THD+N better than 0,004 %
SNR better than -95 dB
Phono Inputs
Discrete, Class-A Op-Amps, Gain 40 dB
Passive RIAA Equalization, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Master Out:
RIAA accuracy within +/- 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS
Master Output
Balanced XLR
Unbalanced RCA L and R
Impedance < 300 ohm
Booth Output
Balanced TRS
Impedance < 300 ohm
Record Output
Nominal level -10dBV
Impedance < 300 ohm
Crosstalk
Channel Fader offness < -100 dB
Channel L/R separation <-70 dB
Isolator offness < -90 dB
What's included in price
Travel Case
class-A discrete circuitry
3 Years Warranty
External Power Supply Unit
24 dB (4-pole) 3 band Master Isolator
Cue/Mix switch for the VU meter
Isolator True Bypass Switch
Dimensions and weight
DIMENSIONS
330 mm (W), 250 mm (D), 98 mm (H) - (please note that this does not include Knobs, Headphone Jack on the front side, RCA's and Sockets on the rear side of the mixer)
WEIGHT
Mixer: 4.5 kg
Power Supply: 1 kg
With travel case: 8 kg
